Kalman Filter

• Kalman Filter

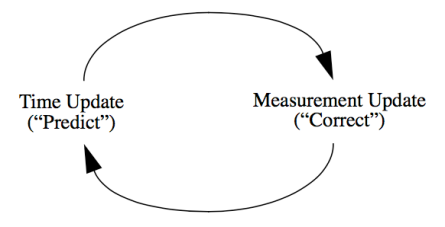

It works by a two-phase process having a prediction phase and an update phase.

- For the prediction phase, the Kalman filter produces estimates of the current state variables, along with their uncertainties.

- Once the outcome of the next measurement (necessarily corrupted with some error, including random noise) is observed, these estimates are updated using a weighted average, with more weight being given to estimates with greater certainty.

- The algorithm is recursive. It can operate in real time, using only the present input measurements and the state calculated previously and its uncertainty matrix; no additional past information is required.



Conditions If the motion model and the measurement model are linear. If the motion model and the measurement model follow a Gaussian distribution.

---

• Prediction phase

Predict the current state distribution.





- μ : Average of probability distribution

- σ : Distribution of of probability distribution

---

• Update phase



Update posterior probability distribution.



- Example



1) Prior Belief



Prior Gaussian distribution



- μ1 : Suppose that the robot was 20 meters away.

- σ1 : Distribution



2) Current Belief



Updated Gaussian distribution



- μ2 : The Sensor measured that the robot is 30 meters.

- σ2 : Distribution



3) Updated Gaussian Probability Distribution





↓





∴
