Complex Number

---

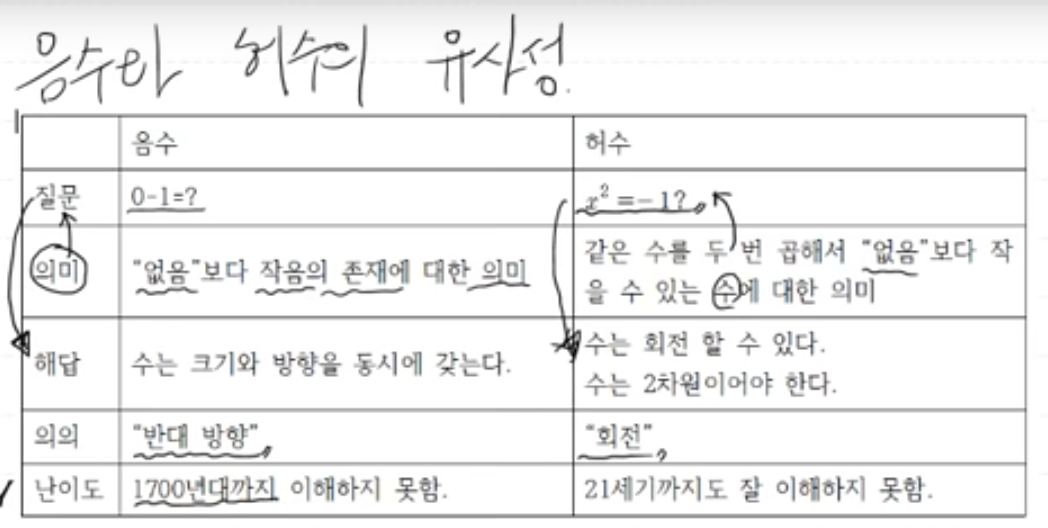

• Imaginary Number



---

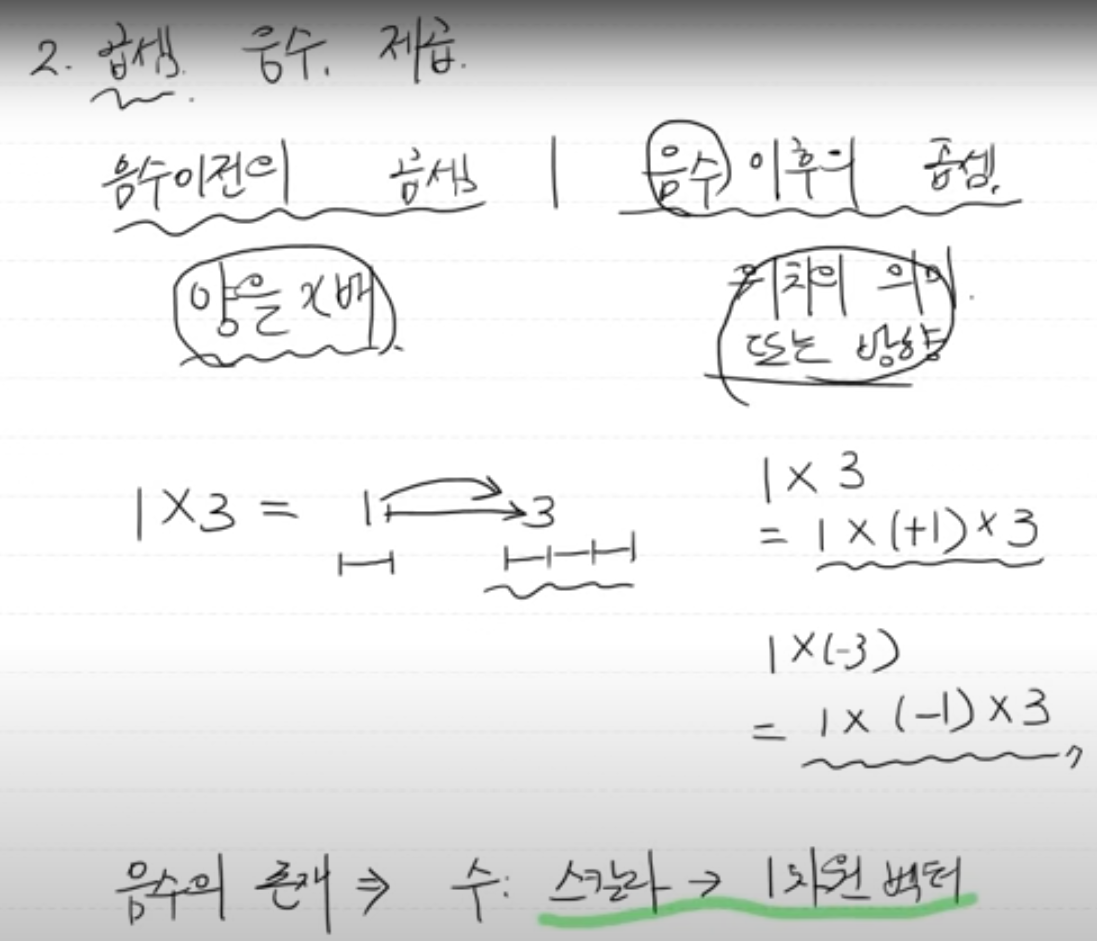

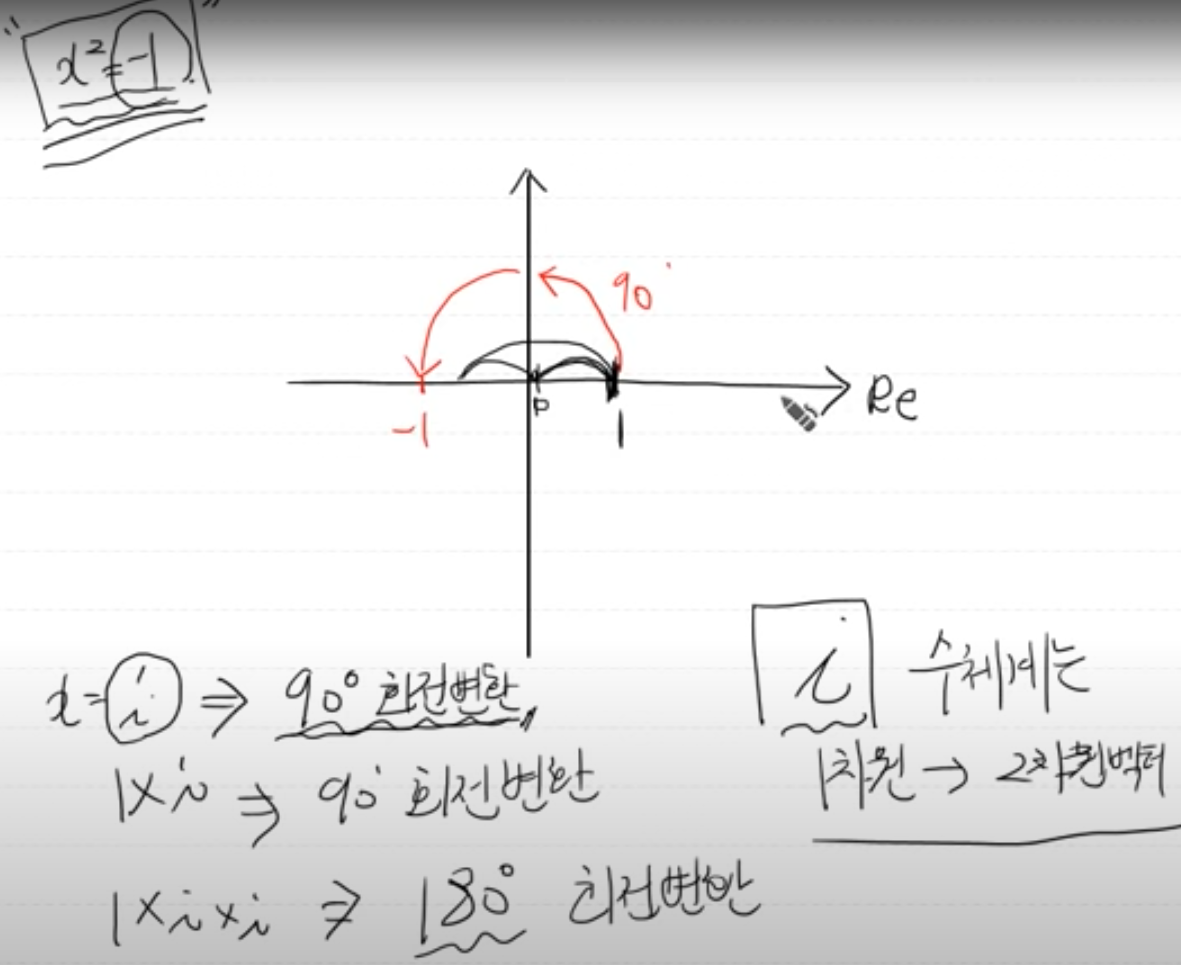

If a one-dimensional vector rotates +90 degrees and rotates +90 degrees once more, the result can be -1.

---

---

• Complex Number





$$\begin{array}{}& x+jy\end{array}$$

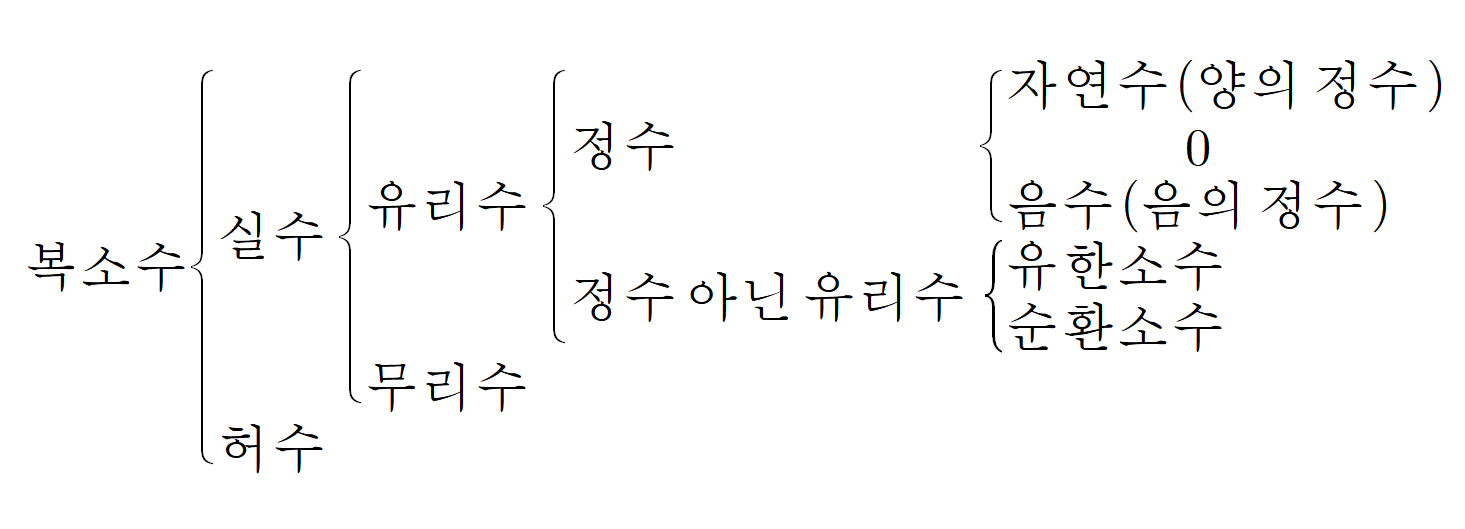

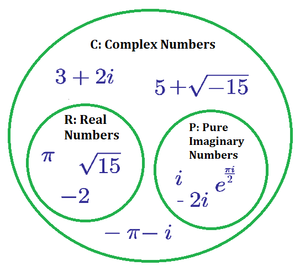

If a number is not expressed as a single number such as 1, 2, or 3 but as a field composed of several units, it is called a complex number, x is called the real part, and y is called the imaginary part.



For example, the equation

has no real solution, because the square of a real number cannot be negative.

---

The ways of Complex Number expression.

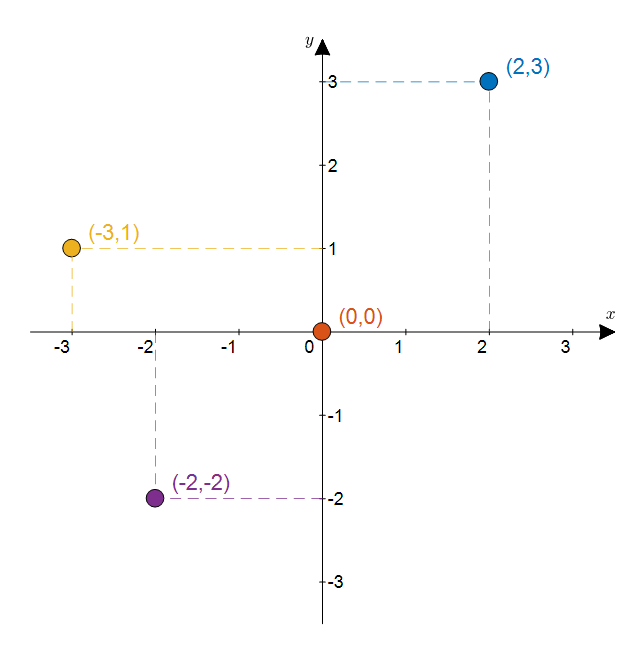

1. Cartesian coordinate



A coordinate system that specifies each point uniquely by a pair of real numbers called coordinates, which are the signed distances to the point from two fixed perpendicular oriented lines



$$\begin{array}{}& (2,3):2+j3\end{array}$$ $$\begin{array}{}& (0,0):0+j0\end{array}$$ $$\begin{array}{}& (-3,1):-3+j1\end{array}$$ $$\begin{array}{}& (-2,-2):-2-j2\end{array}$$



---

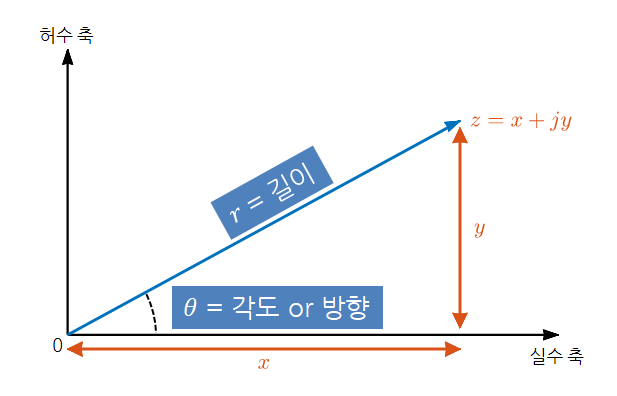

2. Polar Coordinate



Express using the distance from the origin and the angle from the horizontal axis.



$$\begin{array}{}& \{\begin{array}{l}r=\sqrt{x^2+y^2}\\ \theta ={\tan }^{-1}(y/x)\end{array}\end{array}$$ The pair of $(r,\theta )$ can be expressed $$\begin{array}{}& r\mathrm{\angle }\theta \end{array}$$ If the angle is not within the range of $-180°<\theta <180°$, add or subtract a multiple of 360° and make it within 180° such as $3\mathrm{\angle }280°$ to $3\mathrm{\angle }-80°$

---

---

---

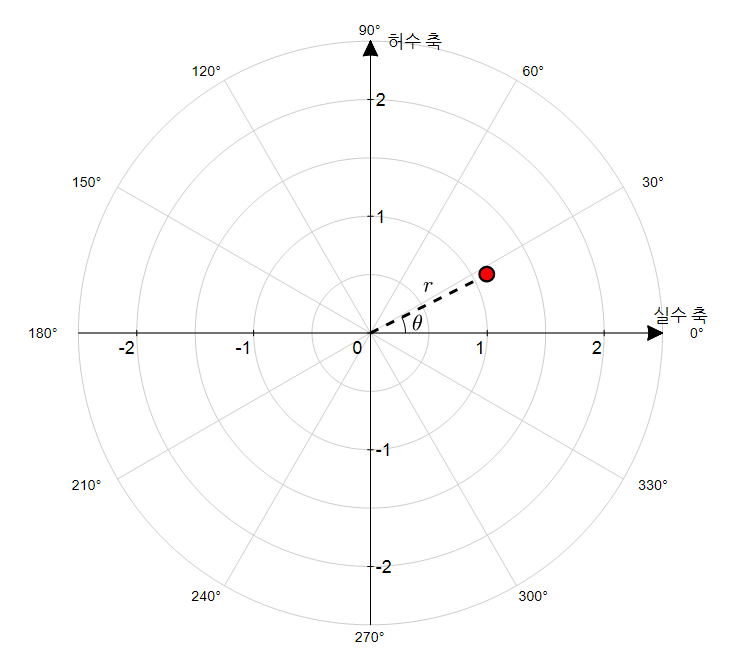

For example, let's calculate the distance and the degree of this.



$\mathrm{z(Complex\; Number)}=1+j0.5$ $$\begin{array}{}& r=\sqrt{1^2+{0.5}^2}=1.118\end{array}$$ $$\begin{array}{}& \theta ={\tan }^{-1}\left(\frac{0.5}{1}\right)=0.4636\text{ rad}\end{array}$$
