2D Transformations

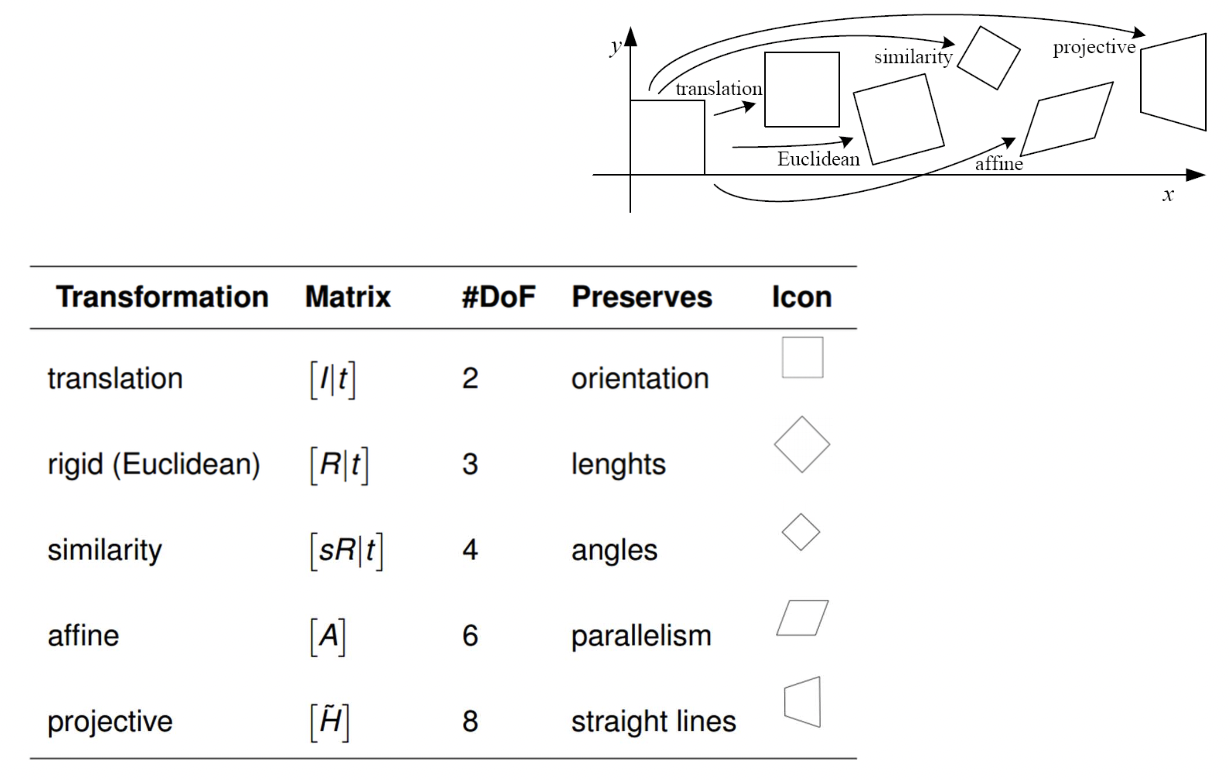

• 2D Transformations



A method used to model the matching relationship between two images directly on a 2D plane.

---

---

• Rigid Transformation(Euclidean transformation)



Only change its position and orientation while maintaining its shape and size.

In other words, it is a transformation that only allows rotation and translation.

---

• Translation



---



$$t_x=\frac{1}{n}\sum _i(x_i^{\prime }-x_i)$$ $$t_y=\frac{1}{n}\sum _i(y_i^{\prime }-y_i)$$

---

---

- Degree of Freedom(DOF) : t1, t2

---

• Shearing



---

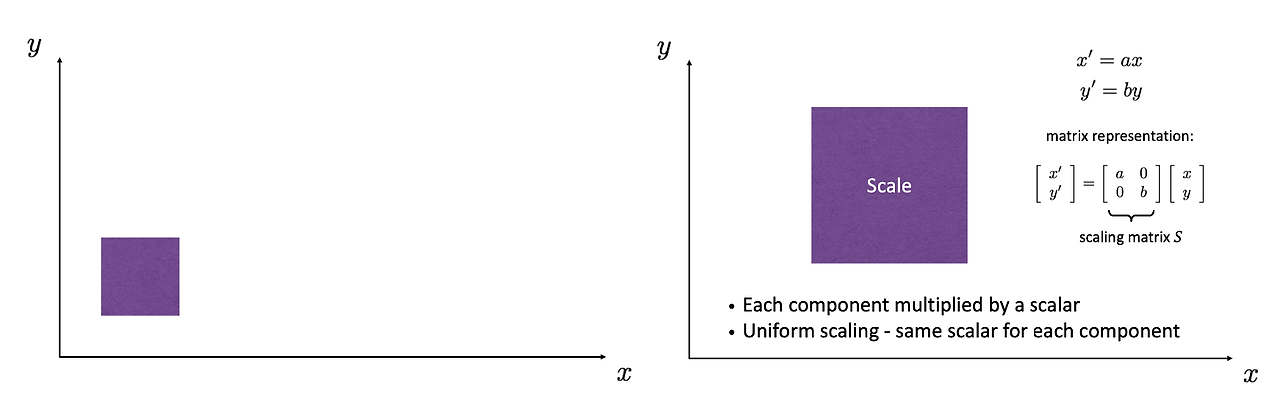

If you want to scale the figure image on the left side by a multiple of the horizontal and vertical b times as shown on the right side, you can apply x'=ax and y' = bx.

---

---

• Rotation

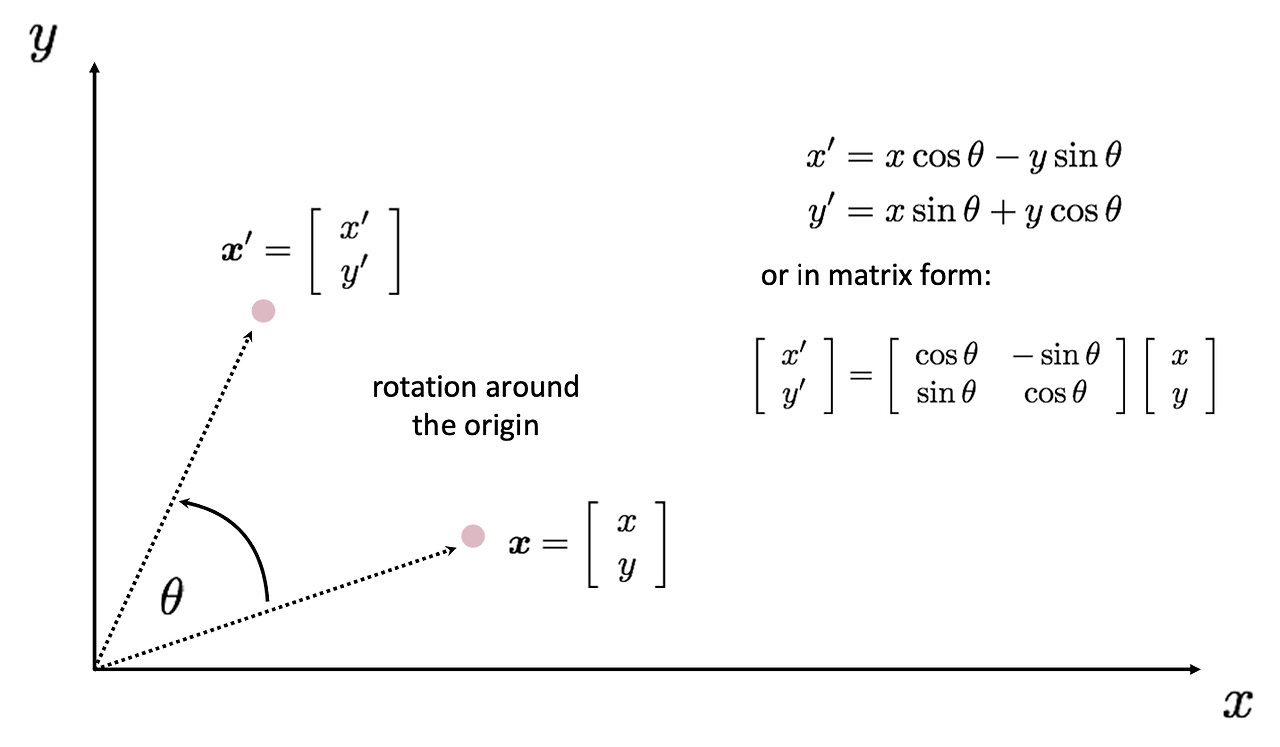

- A transformation matrix that rotates (x, y) counterclockwise by θ radian. The object is spinning based on (0,0).

- Degree of Freedom(DOF) : 1, therefore, only one matching pair can determine the rotational transformation.



$$[\begin{array}{c}{x}^{\prime }\\ y^{\prime }\end{array}]=\left[\begin{array}{cc}\cos \theta & -\sin \theta \\ sin\theta & \cos \theta \end{array}\right]\left[\begin{array}{c}x\\ y\end{array}\right]$$

---

- considering scale change



$$[\begin{array}{c}{x}^{\prime }\\ y^{\prime }\end{array}]=[\begin{array}{cc}a& -b\\ b& a\end{array}][\begin{array}{c}x\\ y\end{array}]$$

---

• Euclidean



---

- Degree of Freedom(DOF) : $\theta ,r_3,r_6$

---

• Rigid



Translation + Rotation

Rotate by θ around the origin of the image and then move in parallel to the original position.

The degree of freedom of the rotational transformation is 3. It requires at least 2 matching pairs.



$$\left[\begin{array}{c}{x}^{\prime }\\ y^{\prime }\end{array}\right]=\left[\begin{array}{cc}\cos \theta & -\sin \theta \\ \sin \theta & \cos \theta \end{array}\right]\left[\begin{array}{c}x\\ y\end{array}\right]+\left[\begin{array}{c}c\\ d\end{array}\right]$$
c : tx + rotation
d : ty + rotation
[tx, ty] : translation

---

• Similarity



---

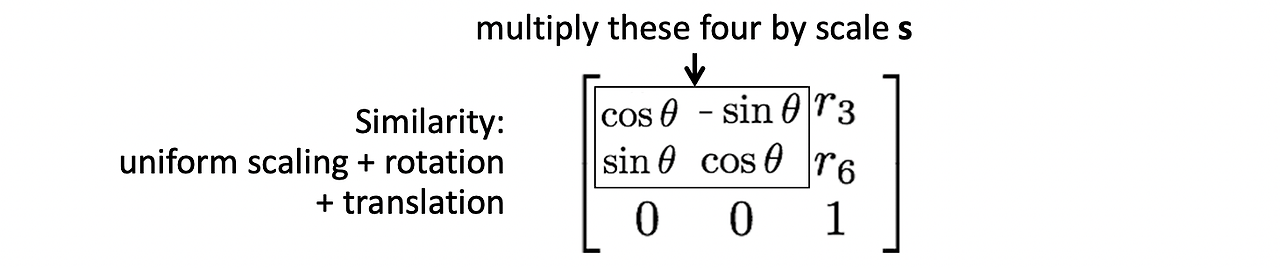

- Degree of Freedom(DOF) : $s,\theta ,r_3,r_6$

---



$$[\begin{array}{c}{x}^{\prime }\\ y^{\prime }\end{array}]=[\begin{array}{cc}a& -b\\ b& a\end{array}][\begin{array}{c}x\\ y\end{array}]+[\begin{array}{c}c\\ d\end{array}]$$

---

- Convert to homogeneous coordinate system

In order to be a single matrix from Rotation + Translation + Scaling



$$[\begin{array}{c}{x}^{\prime }\\ y^{\prime }\\ 1\end{array}]=\left[\begin{array}{ccc}a& -b& c\\ b& a& d\\ 0& 0& 1\end{array}\right]\left[\begin{array}{c}x\\ y\\ 1\end{array}\right]$$

---

• Affine Transformation



---

---

- A transformation that preserves linearity, length (distance) ratio, and parallelism.

---

- Degree of Freedom(DOF) : 6, $\left[\begin{array}{c}{a}_1{a}_2\\ a_4{a}_5\end{array}\right]=\left[\begin{array}{c}s{r}_{1}s{r}_2\\ s{r}_{3}s{r}_4\end{array}\right]=\left[\begin{array}{c}scos\theta -ssin\theta \\ ssin\theta scos\theta \end{array}\right]$ + $h_1,h_2$

---

$$[\begin{array}{c}{x}^{\prime }\\ y^{\prime }\end{array}]=\left[\begin{array}{cc}a& b\\ c& d\end{array}\right]\left[\begin{array}{c}x\\ y\end{array}\right]+\left[\begin{array}{c}e\\ f\end{array}\right]$$

---

- Convert to homogeneous coordinate system



$$\left[\begin{array}{c}{x}^{\prime }\\ y^{\prime }\\ 1\end{array}\right]=\left[\begin{array}{ccc}a& b& e\\ c& d& f\\ 0& 0& 1\end{array}\right]\left[\begin{array}{c}x\\ y\\ 1\end{array}\right]$$





---

• Homograpy (Projective Transformation)



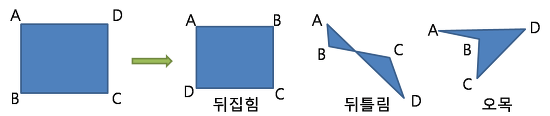

If a planar surface is projected as an image A and an image B for different camera positions, the relationship between the image A and the image B may be expressed as a homography.



$$w[\begin{array}{c}{x}^{\prime }\\ y^{\prime }\\ 1\end{array}]=\left[\begin{array}{c}{h}_{11}{h}_{12}{h}_{13}\\ h_{21}{h}_{22}{h}_{23}\\ h_{31}{h}_{32}{h}_{33}\end{array}\right]\left[\begin{array}{c}x\\ y\\ 1\end{array}\right]$$

---
